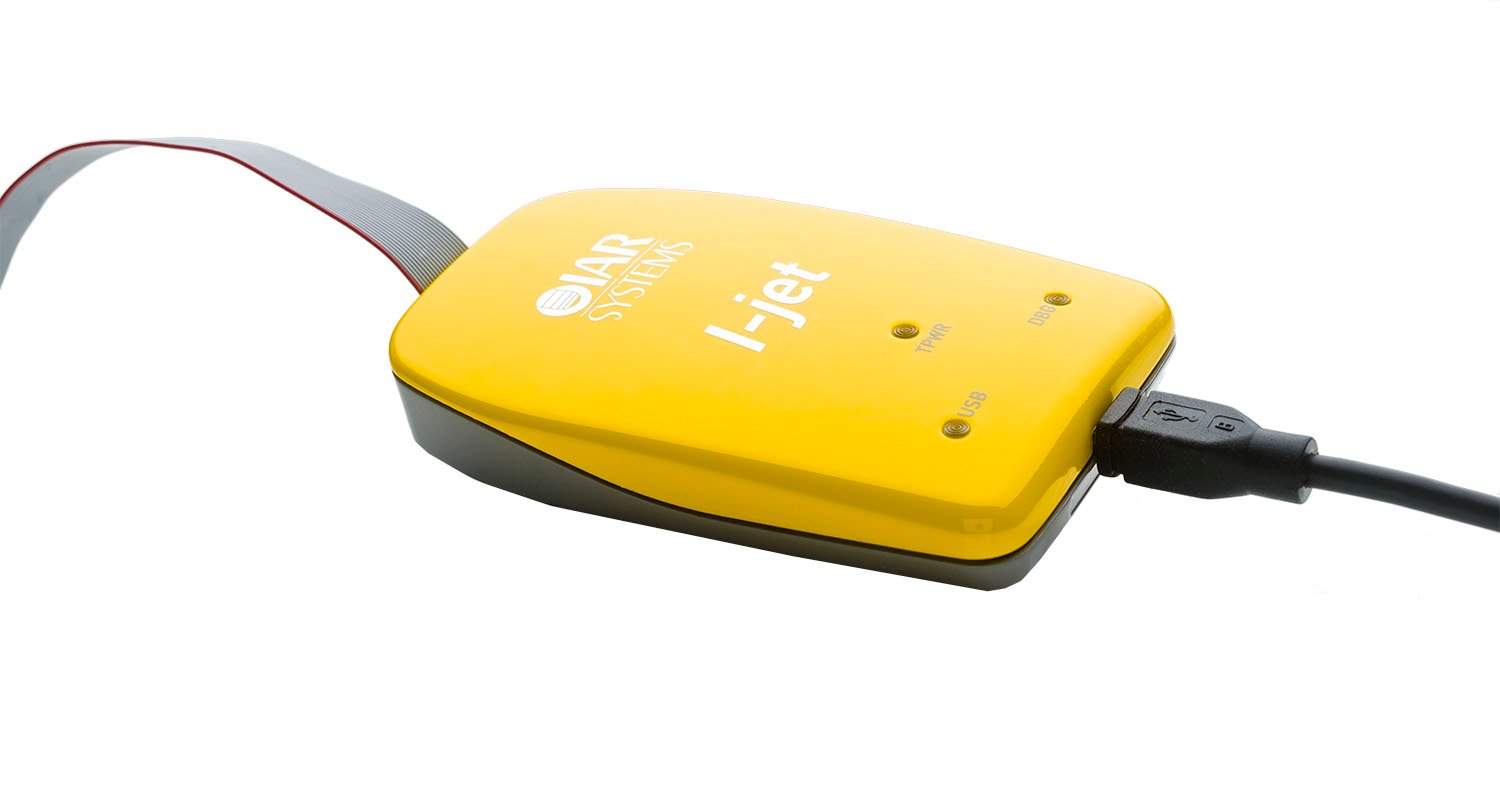

IAR I-jet

IAR Embedded Workbench for Arm의 강력한 기능을 지원하는 디버깅 프로브

견적 문의 영업팀 문의
i_jet

01

IAR Embedded Workbench에서 기본적으로 지원합니다.

통합 툴은 개발 워크플로우를 간소화합니다. 기능이 풍부한 내부 회로 디버깅 프로브는 IAR Embedded Workbench에서 강력한 기능을 지원합니다.

02

최고성능

I-jet은 JTAG 및 SWD/SWO를 통해 최대 1,89 MByte/sec의 다운로드 속도와 최대 60 MHz의 SWO 속도를 지원하는 빠른 디버깅 플랫폼을 제공합니다. JTAG 및 직렬 와이어 디버그(SWD) 클럭은 최대 32MHz입니다(MCU 클럭 속도 제한 없음).

03

Arm에 대한 광범위한 지원

자동 코어 인식 및 JTAG/SWD 감지를 통해 모든 Silicon 벤더의 모든 Arm7/Arm9/Arm11 Core, Arm Cortex-A/R/M Core 지원 또한 ARM Cortex-M0+용 Micro Trace Buffer(MTB)도 지원합니다.

04

파워 디버깅

파워 디버깅은 임베디드 시스템의 소프트웨어 구현이 시스템의 전력 소비에 어떤 영향을 미치는지에 대한 정보를 개발자에게 제공합니다. I-jet은 최대 400mA의 Target 전력을 공급할 수 있으며 소비량은 200kHz에서 최대 200μA의 분해능으로 측정할 수 있습니다.

상세정보 및 프로브 비교

사양

  • General
           I-jet      I-jet Trace CM L I-jet Trace CM XL I-jet Trace Arm
    USB connection High Speed USB 2.0 SuperSpeed USB 3.0 SuperSpeed USB 3.0 SuperSpeed USB 3.0
    USB speed 480 Mbps 5 Gbps 5 Gbps 5 Gbps
    Powered through USB  ✔  ✔  ✔  ✔
    Maximum target power (5V) supplied  400 mA  400 mA  400 mA  400 mA
    First supporting version of IAR
    Embedded Workbench for Arm    		 6.30.8 7.30.3 7.80.1 7.70.1



  • Included adapters
           I-jet      I-jet Trace CM L I-jet Trace CM XL I-jet Trace Arm
    MIPI-10 ✔ ✔ ✔ ✔
    MIPI-20 ✔ ✔ ✔ ✔
    Mictor-38       ✔



  • Optional adapters
      I-jet I-jet Trace CM L I-jet Trace CM XL I-jet Trace Arm
    MIPI-20 to ARM-20 Available Available Available Available
    MIPI-20 Isolated (ETM not supported) Available Available Available

    Available



  • Core support
           I-jet      I-jet Trace CM L I-jet Trace CM XL I-jet Trace Arm
    Arm7/Arm9/Arm11 ✔ ✔ (no ETM trace) ✔ (no ETM trace) ✔ (no ETM trace)
    Arm Cortex-M ✔  ✔  ✔  ✔
    Arm Cortex-R ✔ ✔  (1/2/4 bit ETM trace only) ✔ (1/2/4 bit ETM trace only) ✔
    Arm Cortex-A ✔ ✔ (1/2/4 bit ETM trace only) ✔  (1/2/4 bit ETM trace only) ✔



  • Interfaces
      I-jet I-jet Trace CM L I-jet Trace CM XL I-jet Trace Arm
    JTAG ✔ ✔ ✔ ✔
    SWD ✔ ✔ ✔ ✔
    cJTAG ✔ ✔ ✔ ✔
    SWO UART/Manchester encoding ✔ ✔ ✔ ✔
    Target debug I/O voltages supported 1.65V to 5.5V 1.2V to 5V 1.2V to 5V 1.2V to 5V



  • Trace features
           I-jet      I-jet Trace CM L I-jet Trace CM XL I-jet Trace Arm
    ETM trace buffer   64 MB 256 MB 256 MB
    Trace data collection   1,2, and 4-bit 1,2, and 4-bit 1,2,4,8 and 16-bit
    Maximum ETM trace clock   150 MHz 150 MHz 350 MHz
    Maximum ETM bandwidth   1.2 Gbps 1.2 Gbps 11.2 Gbps
    Automatic clock/data skew adjustment   ✔ ✔ ✔
    Automatic clock/data threshold adjustment       ✔
    ETB/MTB Trace support ✔ ✔ ✔ ✔



  • Performance
      I-jet I-jet Trace CM L I-jet Trace CM XL I-jet Trace Arm
    JTAG/SWD speed 48 MHz 100 MHz 100 MHz 100 MHz
    SWO sampling frequency 96 MHz 200 MHz 200 MHz 200 MHz
    SWO max. bandwidth ~30 Mbps ~60 Mbps ~60 Mbps ~60 Mbps
    Download speed (RAM) 1.89 MByte/s 3.73MByte/s 3.73MByte/s 3.73MByte/s
    Power sampling resolution ~160 µA ~160 µA ~160 µA ~160 µA
    Power sampling rate 200 ksps 200 ksps 200 ksps 200 ksps



  • Functionality
      I-jet I-jet Trace CM L I-jet Trace CM XL I-jet Trace for Arm
    Automatic core recognition ✔ ✔ ✔ ✔
    Code breakpoints ✔ ✔ ✔ ✔
    Data breakpoints ✔ ✔ ✔ ✔
    Flash breakpoints ✔ ✔ ✔ ✔
    Interrupt logging ✔ ✔ ✔ ✔
    Data logging ✔ ✔ ✔ ✔
    Call stack trace With ETB ✔ ✔ ✔
    Cycle counter (For Cortex-M devices) ✔ ✔ ✔ ✔
    Code coverage Sampled/Full with ETB/MTB Full Full Full
    Function profiling Sampled/Full with ETB/MTB Full Full Full
    Instruction trace Instruction trace Full Full Full



견적 문의

개발 프로젝트에서 이 제품을 사용하고 싶습니까? 당사 영업팀이 귀사에 적합한 솔루션을 안내해 드립니다. 이 양식을 작성하시면 귀하의 필요에 맞는 가격 견적을 보내드립니다. 귀하의 요청을 기다리겠습니다!

* read our Privacy policy

추가정보

CE and RoHS compliance

  • Our debug probes I-jet, I-jet Trace and I-scope are in compliance with:CE: EMC Directive 2014/30/EU on the following test standards for IT product:EN 55022:2010/AC:2011, EN 61000-3-2:2014 & EN 61000-3-3:2013EN 55024: 201++A1:2015CE: RoHS 3 Directive (EU) 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment, including all applicable amendments—Directive (EU) 2015/863FCC: the requirements of 47 CFR Part 15 regulation & ANSI C63.4 for the evaluation of Class A of electromagnetic compatibility.Regulation (EC) No 1907/2006 of the European Parliament and of the Council of 18 December 2006 concerning the Registration, Evaluation, Authorization and Restriction of Chemicals (REACH).Regulation (EC) No 850/2004, (EU) No 519/2012 of the European Parliament and of the Council on Persistent Organic Pollutants (POPs )US provision to the Wall Street Reform and Consumer Protection Act (ref: Dodd-Frank Act 1502 on conflict minerals)SJ/T 11363-2006 for Management Methods for Controlling Pollution by Electronic Information Products (China RoHS)Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on Waste Electrical & Electronic Equipment (WEEE)We keep working together with our partners and suppliers to fulfill our responsibility to ensure our are products in compliance with the above directives, regulations and requirements.

Connectors and adapters

  • I-jet and I-jet Trace has a MIPI-20 connector on the front panel and come with MIPI-20 and MIPI-10 cables. For I-jet Trace, only the MIPI-20 cable supports the ETM trace functionality, and MIPI-10 is for plain JTAG/SWD/SWO debugging. For details on the connectors, see the user manual.

    In addition, the following adapters are available from IAR to fit different target connectors:

    ADA-MIPI20-ISO Adapter adapter_mipi20_iso


    ADA-MIPI20-ARM20

    ADA-MIPI20-RISCV12



    ADA-MIPI20-RISCV24
